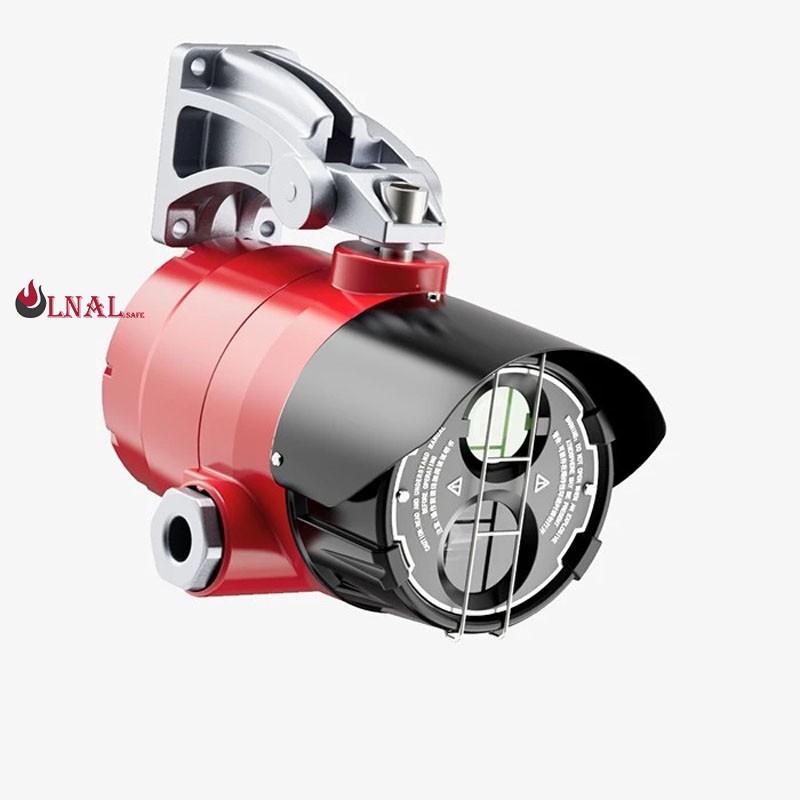

Industrial UV/IR Flame Detector with Triple IR and UV Sensor for Explosive Environments

The Industrial UV/IR Flame Detector combines three infrared sensors and one ultraviolet sensor to deliver highly reliable flame detection across a wide spectral range. Designed for challenging environments, this detector uses proprietary algorithms and optical filters to minimize false alarms while maximizing detection accuracy. Its robust aluminum housing ensures durability, and support for multiple communication protocols (relay, 4-20mA, RS485) offers flexible integration. Ideal for oil, gas, chemical, and other high-risk industries, this detector meets GB12791, GB15631, and GB3836 standards, providing peace of mind in explosive atmospheres.

Features:

Triple IR + single UV sensor for enhanced accuracy
Proprietary flame recognition algorithm
Advanced optical filter to reduce interference
120° wide viewing angle
Self-diagnosis with fault alarm output
Easy maintenance with durable aluminum housing
Multiple output options: relay, 4-20mA, RS485
Complies with explosion-proof standards: Exd IIC T6 Gb / Ex tD A21 IP66/IP67 T80°C

Advantages

Advantage	Description
High Accuracy	Multi-spectral sensing reduces false alarms
Broad Detection Coverage	Detects various fuels including heptane, gasoline, diesel, alcohol, and methane
Fast Response Time	≤10 seconds for n-heptane flame
Wide Angle Coverage	120° field of view for large area monitoring
Self-Monitoring	Continuous self-check and instant fault alerts
Robust Design	Aluminum housing with high corrosion resistance
Flexible Connectivity	Supports relay, 4-20mA loop, and RS485 communication
Certified Safety	Meets GB12791, GB15631, and GB3836; explosion-proof rated

Specifications

Parameter	Value
Spectral Range	IR: 3.8–5.0 µm; UV: 185–260 nm
Detection Distance	Heptane: 55m, Gasoline: 45m, Diesel: 40m, Kerosene: 40m, Alcohol: 35m, Methane: 35m, Paper: 30m
Response Time	≤10s (n-heptane)
Viewing Angle	120°
Protection Rating	IP66/IP67
Explosion Proof Rating	Exd IIC T6 Gb / Ex tD A21 IP66/IP67 T80°C
Communication	Relay, 4-20mA, RS485
Standards	GB12791, GB15631, GB3836
