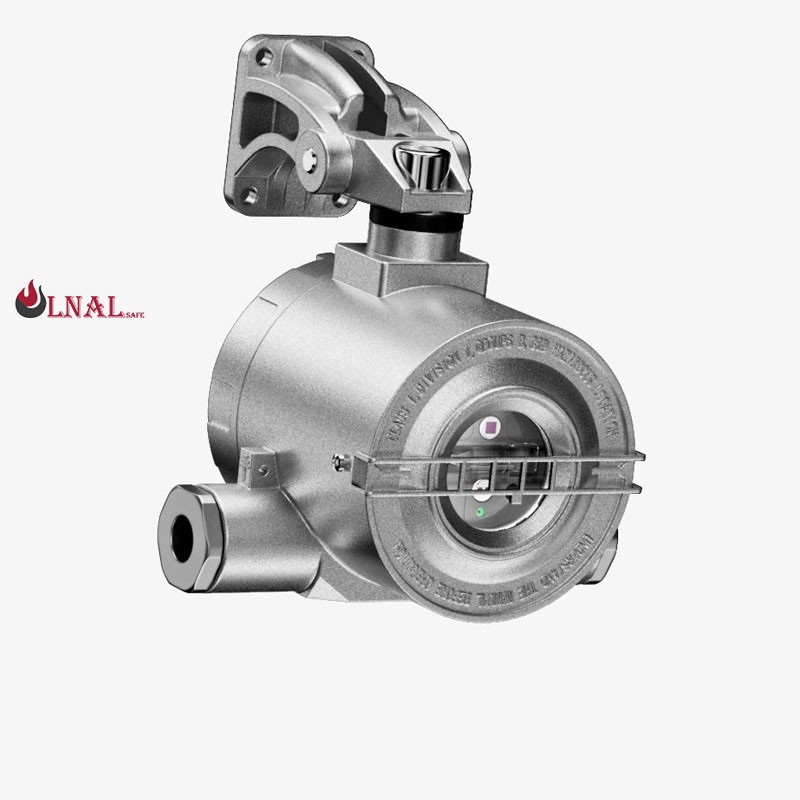

Industrial Four-Band UV/IR Flame Detector with Triple IR and UV Sensor for Hazardous Areas

Our Four-Band UV/IR Flame Detector integrates three infrared sensors and one ultraviolet sensor to deliver precise and reliable fire detection in high-risk industrial settings. Engineered with a proprietary algorithm and robust 316L stainless steel housing, this detector excels in extreme conditions, including strong acids, alkalis, and wide temperature variations. Its modular core design simplifies maintenance, while advanced EMC circuitry ensures superior electromagnetic immunity. With a wide 120° viewing angle and support for multiple fuel types, this detector meets GB12791, GB15631, and GB3836 standards, making it an ideal choice for oil, gas, chemical, and other hazardous industries.

Features:

Triple IR + single UV sensor for accurate multi-spectrum detection
Proprietary flame recognition algorithm
Excellent anti-interference with industrial EMC design
Corrosion-resistant 316L stainless steel housing
Self-diagnosis with fault alarm output
Modular internal design for easy maintenance
Wide 120° viewing angle
Complies with explosion-proof standards: Exd IIC T6 Gb / Ex tD A21 IP66/IP67 T80°C

Advantages

Advantage	Description
High Detection Accuracy	Multi-spectral sensing reduces false alarms from non-flame sources
Broad Fuel Coverage	Detects heptane, gasoline, diesel, kerosene, alcohol, paper, and methane
Fast Response Time	≤10s for n-heptane; ≤5s for methane
Wide Monitoring Range	120° field of view for extensive area coverage
Self-Check Capability	Continuous self-diagnosis and instant fault reporting
Extreme Environment Ready	316L stainless steel housing resists corrosion in harsh conditions
Easy Maintenance	Modular design allows quick and convenient servicing
Certified Safety	Meets GB12791, GB15631, and GB3836; explosion-proof rated

Specifications

Parameter	Value
Spectral Range	IR: 3.8–5.0 µm; UV: 185–260 nm
Detection Distance	Heptane: 55m, Gasoline: 45m, Diesel: 40m, Kerosene: 40m, Alcohol: 35m, Paper: 30m, Methane: 70m
Response Time	≤10s (n-heptane), ≤5s (methane)
Viewing Angle	120°
Protection Rating	IP66/IP67
Explosion Proof Rating	Exd IIC T6 Gb / Ex tD A21 IP66/IP67 T80°C
Standards	GB12791, GB15631, GB3836
