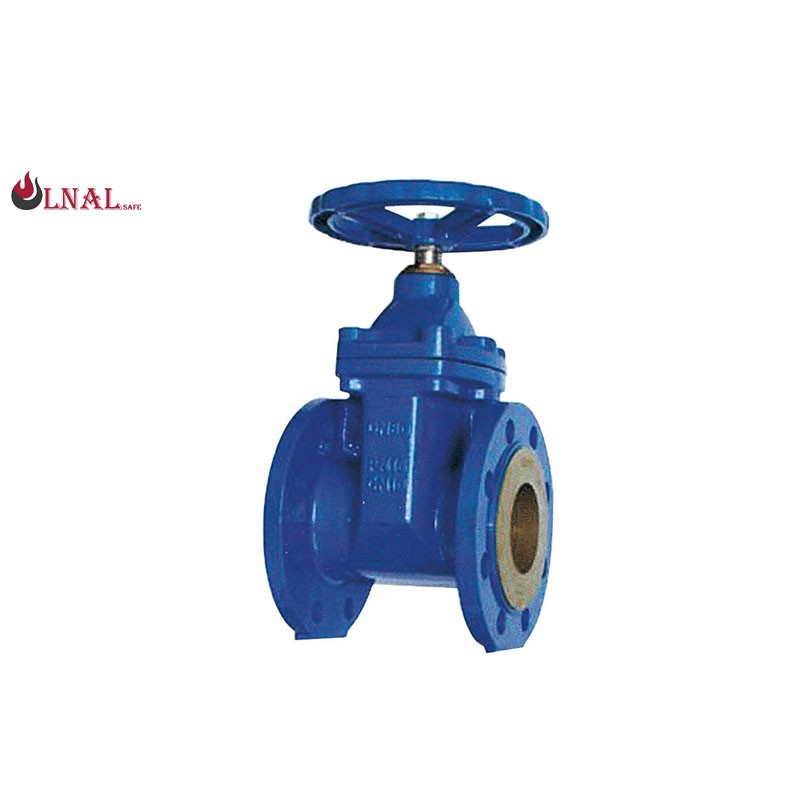

Ductile Iron Gate Valve, ANSI Flange, Rising Stem, Resilient Seat, for Water & General Services

Our ductile iron gate valve is engineered for superior performance in water supply, industrial pipelines, and general service applications. Constructed from high-grade nodular cast iron (QT450), this valve offers exceptional strength, impact resistance, and durability. It features a rising stem for clear visual positioning, a resilient seat with Nitrile rubber sealing for bubble-tight shut-off, and a handwheel operation for easy control. Compliant with ANSI standards and designed for pressures up to 150LB, this valve is ideal for systems requiring reliable isolation and minimal maintenance.

Product Feature

Ductile Iron Construction: Made from nodular cast iron (QT450) for high strength, toughness, and corrosion resistance.
Resilient Seat Design: Features a Nitrile rubber seal for tight shut-off and excellent sealing performance.
Rising Stem (OS&Y): Provides clear visual indication of valve position for safe and efficient operation.
Flange Connection: ANSI-standard flange ends ensure easy installation and secure pipeline integration.
Handwheel Operation: Manual operation for precise flow control, suitable for applications without external power.
Wide Size Range: Available in sizes from DN40 to DN1200 to meet diverse pipeline requirements.

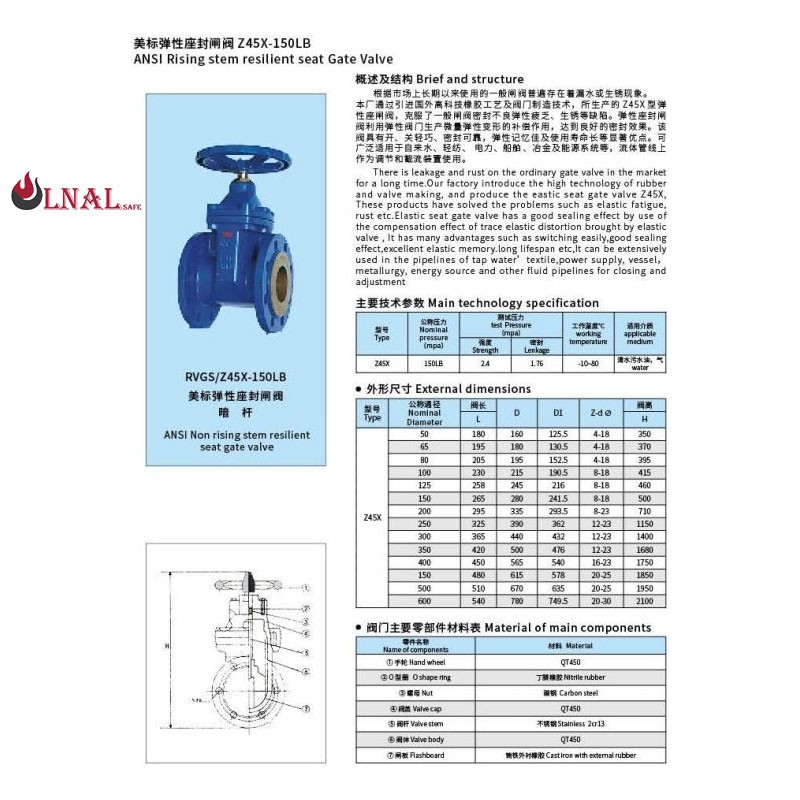

Specifications

Attribute	Specification
Size Range	DN40 - DN1200
Pressure Rating	ANSI 150LB
Design Standard	ANSI B16.34, API6D, API600
Connection Type	Flange Ends
Body Material	Ductile Iron (QT450)
Stem Design	Rising Stem
Seat Material	Resilient Seat (Nitrile Rubber)
Operation	Manual Handwheel
Media	Water, Oil, Gas (General Services)
Temperature Range	Normal to Medium Temperature (T<80°C)
Certifications	ISO9001, ISO14001, ISO45001

Advantages

Advantage	Description
Exceptional Durability	Ductile iron construction offers superior impact and corrosion resistance.
Bubble-Tight Sealing	Resilient seat with Nitrile rubber ensures zero leakage and reliable performance.
Easy Visual Monitoring	Rising stem design allows quick identification of valve status.
Easy Installation	ANSI flange ends simplify fitting and ensure compatibility with existing pipelines.
Low Maintenance	Robust design and resilient seat reduce wear and extend service life.
Versatile Application	Suitable for water, oil, gas, and general industrial services.
