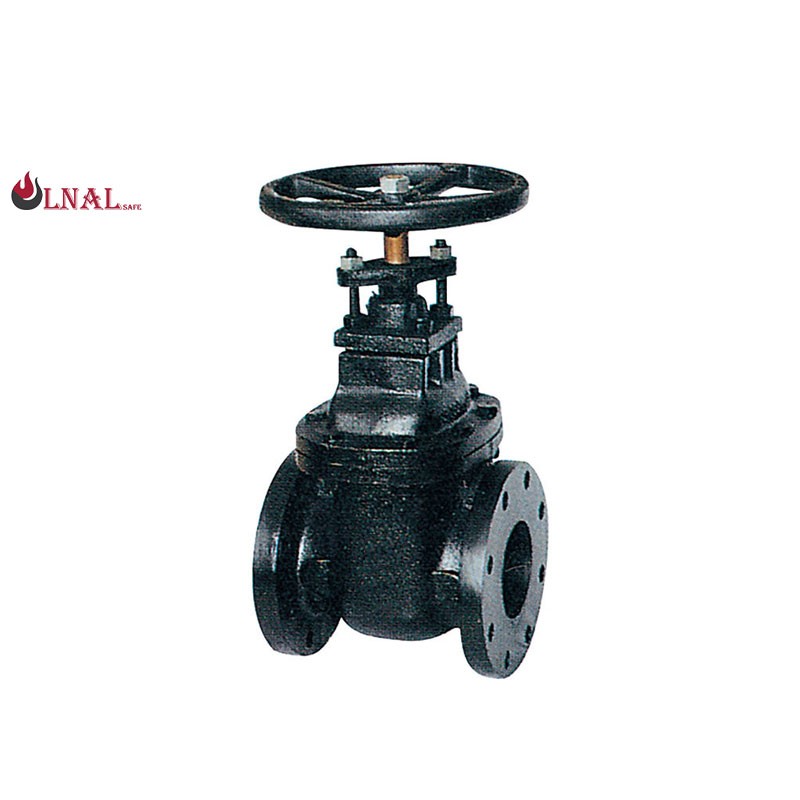

Industrial Cast Iron Gate Valve, Flange Type, Non-Rising Stem, PN10/16, for Water Systems

Industrial Cast Iron Gate Valve, Flange Type, Non-Rising Stem, PN10/16, for Water Systems

Our industrial cast iron gate valve is engineered for efficient flow control in water supply, distribution, and general industrial applications. Built from high-quality grey cast iron, this valve features a non-rising stem design, making it ideal for installations with limited vertical space. With pressure ratings of PN10/16 (1.0MPa/1.6MPa) and compliance with international standards such as GB, BS, DIN, ANSI, and ASME, this valve ensures reliable performance and durability. The hard seal design, coupled with optional soft seat materials like EPDM, PTFE, or NBR, provides leak-proof operation and extended service life.

Product Feature

Robust Construction: Made from high-quality grey cast iron for excellent strength and corrosion resistance.
Non-Rising Stem Design: Ideal for space-constrained installations, allowing operation without vertical movement.
Flange Connection: Ensures easy installation and secure, leak-proof fitting in pipeline systems.
Hard Seal with Optional Soft Seats: Features a hard seal with options for EPDM, PTFE, or NBR seats to enhance sealing performance and longevity.
Wide Size Range: Available in sizes from DN40 to DN1200 (1.5" to 48") to accommodate various pipeline requirements.
Manual Operation: Simple handwheel operation with padlock capability for safety and security.

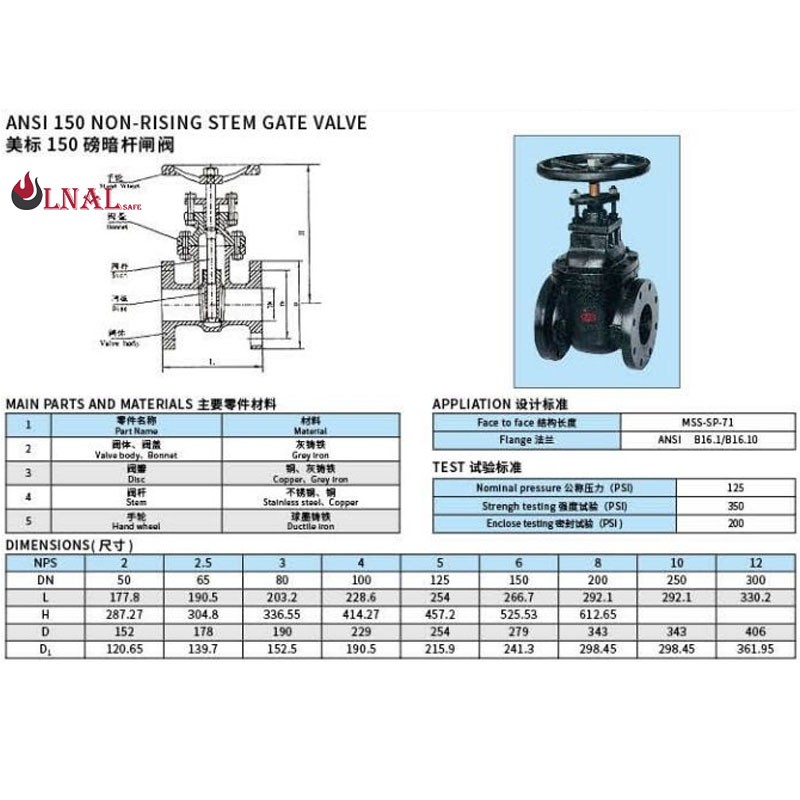

Specifications

Attribute	Specification
Size Range	DN40 - DN1200 (1.5" - 48")
Pressure Rating	PN10, PN16 (1.0MPa, 1.6MPa)
Design Standard	GB, BS, DIN, ANSI, ASME
Connection Type	Flange Ends
Body Material	Grey Cast Iron
Stem Design	Non-Rising Stem
Seat Material	Hard Seal (EPDM, PTFE, NBR optional)
Operation	Manual Handwheel (Max. 2 Padlocks)
Media	Water
Temperature Range	Normal to Medium Temperature (≤120°C)
Certifications	CE, ISO9001, ISO14001, ISO45001

Advantages

Advantage	Description
Space-Saving Design	Non-rising stem allows operation in limited vertical spaces.
Excellent Sealing	Hard seal with optional soft materials ensures tight shut-off and minimal leakage.
Durable Material	Grey cast iron body offers high corrosion resistance and long service life.
Easy Installation	Flange connection simplifies fitting and ensures secure pipeline integration.
Versatile Application	Suitable for water-based systems in municipal, industrial, and commercial settings.
Safety Feature	Padlock capability prevents unauthorized operation.
Global Compliance	Manufactured to GB, BS, DIN, ANSI, and ASME standards for reliable performance.
