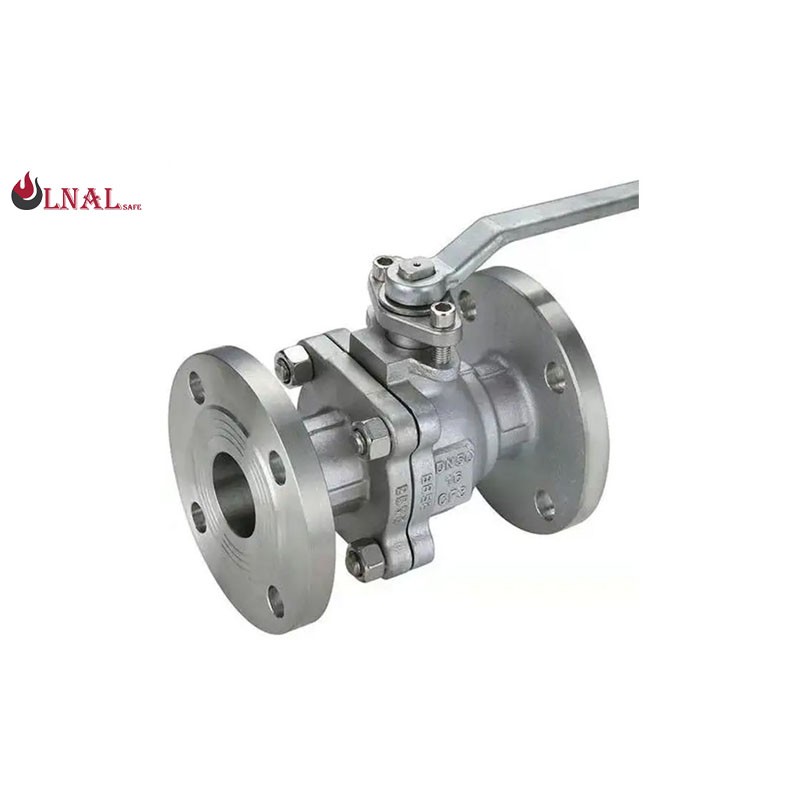

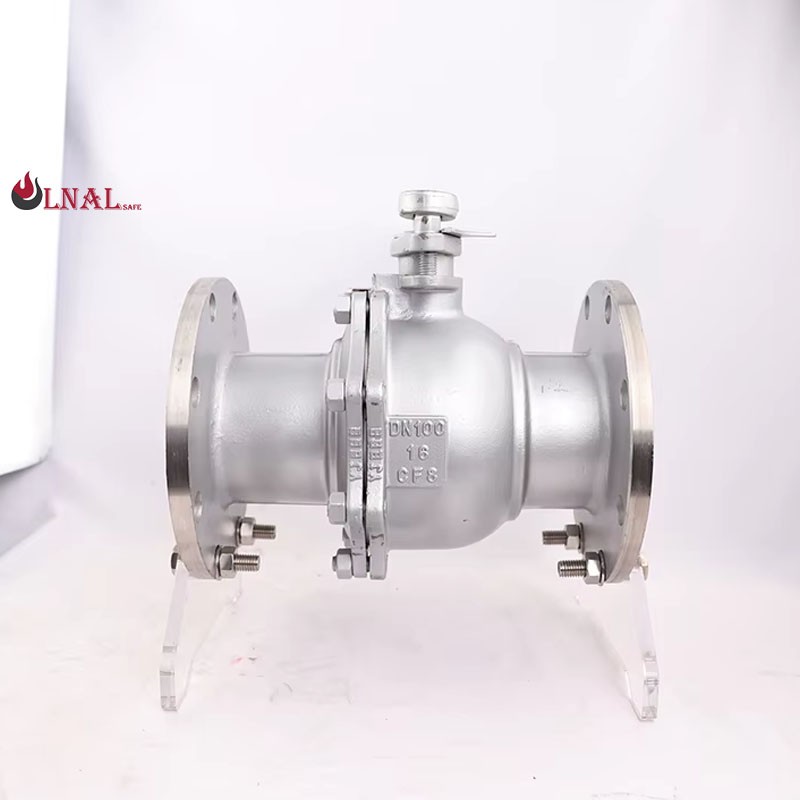

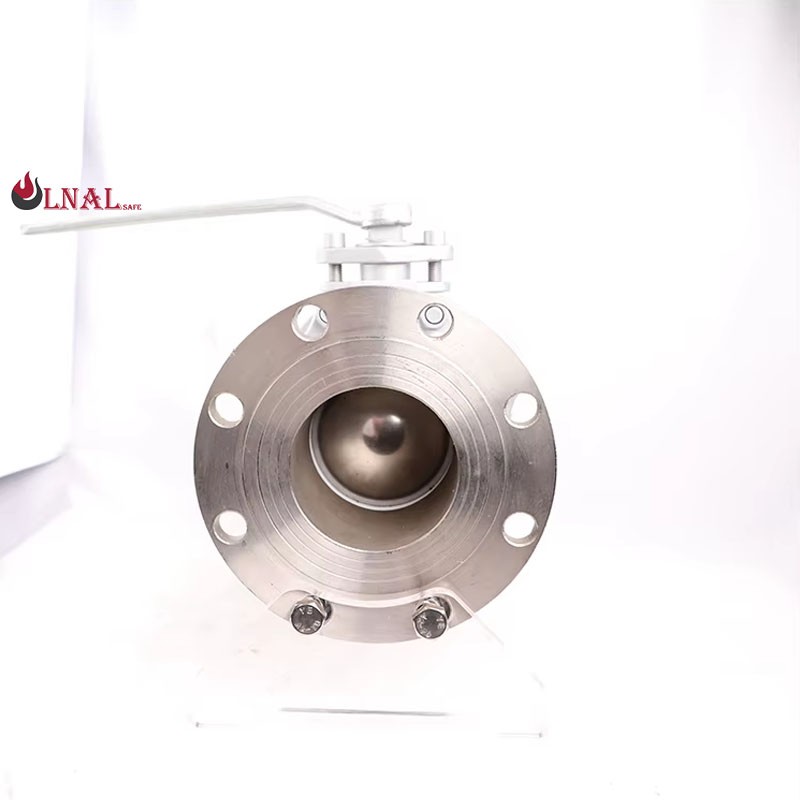

Flange Ball Valve, Stainless Steel 304/316 & WCB, 150lb Pressure Rating, Manual Handle Operation

Flange Ball Valve, Stainless Steel 304/316 & WCB, 150lb Pressure Rating, Manual Handle Operation

Our flange ball valve is engineered for superior performance in various industrial applications, including water, oil, and gas systems. Constructed from high-quality materials such as stainless steel 304/316 and WCB, this valve offers excellent durability, corrosion resistance, and reliability. The flanged ends ensure easy installation and secure connections, while the manual handle operation allows for quick and efficient flow control. With a pressure rating of 150lb and compliance with international standards, this valve is ideal for use in demanding environments such as petroleum, chemical, and water treatment industries.

Features:

Constructed from stainless steel 304/316 or WCB for durability and corrosion resistance
Flanged ends for secure and easy installation
Manual handle operation for quick 90-degree open/close control
Suitable for high-pressure applications (150lb rating)
Full bore design to minimize pressure drop
Leak-proof performance with NBR or other soft seals
Compliant with API, ANSI, and other international standards

Advantages:

Advantage	Description
High Durability	Stainless steel 304/316 and WCB materials ensure long service life.
Corrosion Resistance	Ideal for use in corrosive environments, including water and chemical media.
Easy Installation	Flanged ends allow for straightforward and secure pipeline connections.
Efficient Flow Control	Full bore design reduces pressure loss and enhances system efficiency.
Reliable Sealing	Soft seals (NBR, PTFE, etc.) ensure bubble-tight shut-off.
Versatile Applications	Suitable for water, oil, gas, and other industrial media.

Specifications:

Attribute	Value(s)
Size Range	DN20 – DN250
Body Material	Stainless Steel 304/316, WCB
Connection Type	Flange Ends
Seal Material	NBR, PTFE, EPDM (optional)
Operation Type	Manual Handle
Media	Water, Oil, Gas
Temperature Range	-20°C to 200°C
Pressure Rating	150lb
Design Standard	API, ANSI, ISO
Warranty	2 Years
