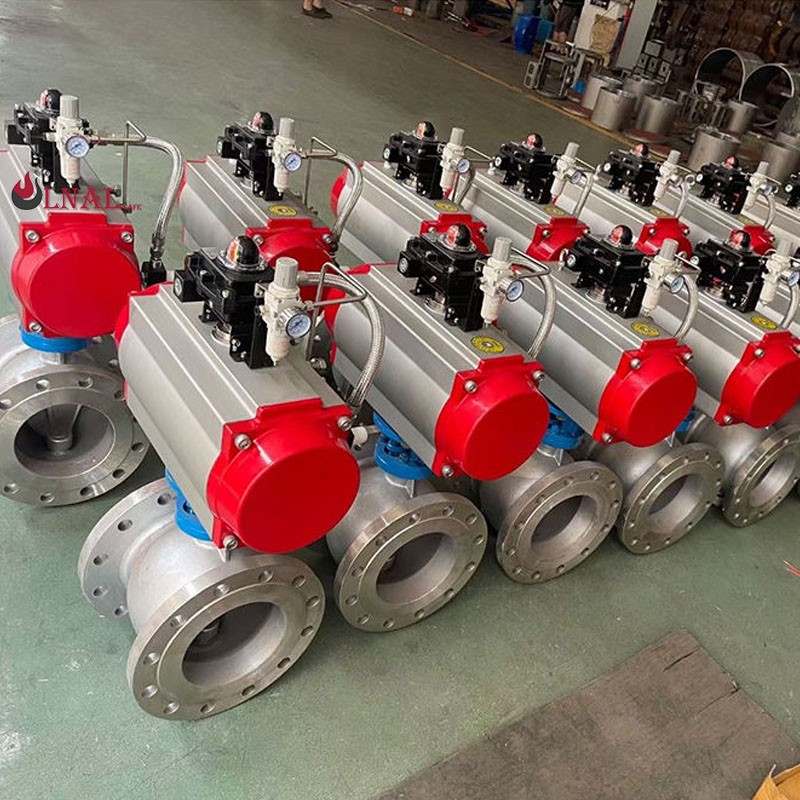

Stainless Steel Ball Valve with Pneumatic Actuator, Flange Connection, Positioner Compatible

Stainless Steel Ball Valve with Pneumatic Actuator, Flange Connection, Positioner Compatible

Our stainless steel ball valves represent the highest standard in industrial flow control solutions, designed for demanding applications in petroleum, chemical processing, and water treatment systems. These premium valves feature robust stainless steel construction with optional pneumatic actuator integration for automated operation. The flange end connection ensures secure, leak-proof installation while the compatible positioner allows for precise flow control. Available in sizes from DN50 to DN600 and pressure ratings up to 900 PSI, these valves handle extreme temperatures from -22°F to 284°F. With multiple sealing material options including PTFE, EPDM, NBR, FPM, and FKM, they provide reliable performance with various media including water, oil, gas, and chemicals.

Features:

Constructed from high-grade stainless steel for superior corrosion resistance
Optional pneumatic actuator for automated operation
Flange end connection for secure installation
Positioner compatible for precise flow control
Multiple sealing options: PTFE, EPDM, NBR, FPM, FKM
Full port design for minimal pressure drop
Fire-safe design available
Suitable for high-pressure applications (up to 900 PSI)
Wide temperature range operation (-22°F to 284°F)
Compliant with ISO, API, and ANSI standards

Advantages:

Advantage	Description
Corrosion Resistance	Stainless steel construction withstands corrosive media and environments
Automation Ready	Pneumatic actuator option enables automated control systems
Precise Flow Control	Positioner compatibility allows accurate flow regulation
High Pressure Capability	Robust design handles pressures up to 900 PSI
Temperature Resilience	Performs reliably in extreme temperature conditions
Versatile Sealing	Multiple seal materials suit various media types
Long Service Life	Premium materials and construction ensure durability and reliability

Specifications:

Attribute	Value(s)
Size Range	DN50 - DN600
Body Material	Stainless Steel
Connection Type	Flange Ends (NPT, True Union optional)
Operation Options	Manual Lever or Pneumatic Actuator
Media	Water, Oil, Gas, Chemicals
Temperature Range	-22°F to 284°F (-30°C to 140°C)
Pressure Rating	200 PSI, 500 PSI, 900 PSI
Seal Materials	PTFE, EPDM, NBR, FPM, FKM
Actuator Compatibility	Pneumatic (with positioner option)
Design Standard	API, ANSI, ISO
Warranty	2 Years
