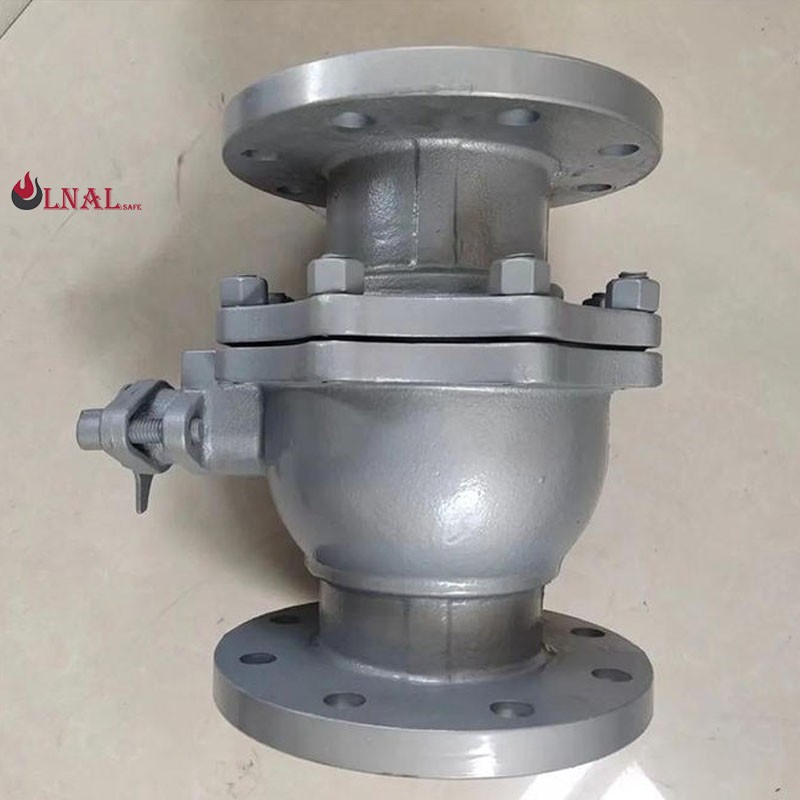

2 Piece Flanged Ball Valve, Carbon Steel Construction, High Pressure Rating, ANSI Standard

2 Piece Flanged Ball Valve, Carbon Steel Construction, High Pressure Rating, ANSI Standard

Our 2 piece flanged ball valve is engineered for superior performance in demanding industrial applications. Featuring a robust carbon steel construction, this valve is designed to handle high pressure environments up to 900 PSI. The two-piece design allows for easy maintenance and cleaning without removing the entire valve from the pipeline. With flanged ends ensuring secure connections and leak-proof performance, this valve is ideal for water, oil, and gas systems. Compliant with ANSI standards, it offers reliable operation and durability in petroleum, chemical, and water treatment industries.

Features:

Two-piece design for easy maintenance and cleaning
Constructed from high-quality carbon steel for durability and strength
Flanged ends for secure and easy installation
Suitable for high-pressure applications (up to 900 PSI)
Manual lever operation for quick 90-degree open/close control
Options for sealing materials: PTFE, EPDM, NBR, FPM, FKM
Compliant with ANSI standards for safety and reliability

Advantages:

Advantage	Description
Easy Maintenance	Two-piece design allows for disassembly without removing the valve from the pipeline.
High Pressure Resistance	Carbon steel construction ensures reliability under pressures up to 900 PSI.
Leak-Proof Performance	High-quality seals (PTFE, EPDM, etc.) ensure bubble-tight shut-off.
Secure Installation	Flanged ends provide stable and leak-free connections.
Versatile Applications	Suitable for water, oil, gas, and other industrial media under high-pressure conditions.
Compliance with Standards	Meets ANSI standards for quality and performance.

Specifications:

Attribute	Value(s)
Size Range	DN20 – DN250
Body Material	Carbon Steel
Connection Type	Flange Ends
Seal Material	PTFE, EPDM, NBR, FPM, FKM
Operation Type	Manual Lever
Media	Water, Oil, Gas
Temperature Range	-22°F to 284°F (-30°C to 140°C)
Pressure Rating	200 PSI, 500 PSI, 900 PSI
Design Standard	ANSI
Warranty	2 Years
